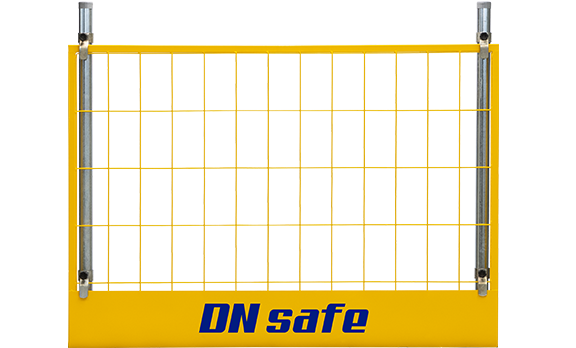

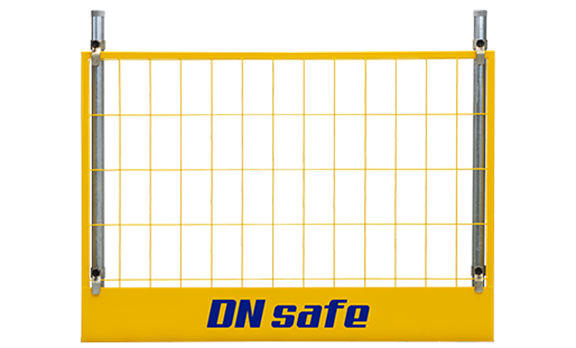

Safety Panel With Frame Yellow
TECHNICAL DETAILS
| Height | 112 cm | ||||||
| Width | 130 cm (Tip 1) |
260 cm (Tip 2) |
|||||
| Profile Frame | 20x20x1,5 mm and 20x30x1,5 mm | ||||||
| Diameter Of Horizontal Wire | ø 7 mm and ø 6 mm | ||||||
| Diameter Of Vertical Wire | ø 5 mm | ||||||
| Thickness Of Metal Sheet | 0,5 mm | ||||||
| Diameter Of Post | ø 48 mm | ||||||
| Thickness Of Post | 2,5 mm | ||||||
| Accessories | Modular Stays |
Modular Hook |
Expansion Bolt |
||||
| Panel Coating | 120 µ | ||||||
| Colour | RAL 1018 Yellow | ||||||
| Coating of post and accessory | Electrogalvanized | ||||||
